At a Plaquemines LNG facility, Boulderscape lined multiple structural basins to exacting tolerances — placing roughly 14,300 square feet of structural shotcrete with a smooth trowel finish held to 1/8 inch over 10 feet, delivered in 15 days at 34% below traditional construction.
Record Installation Time
Savings Over Alternatives
Wall Square Footage

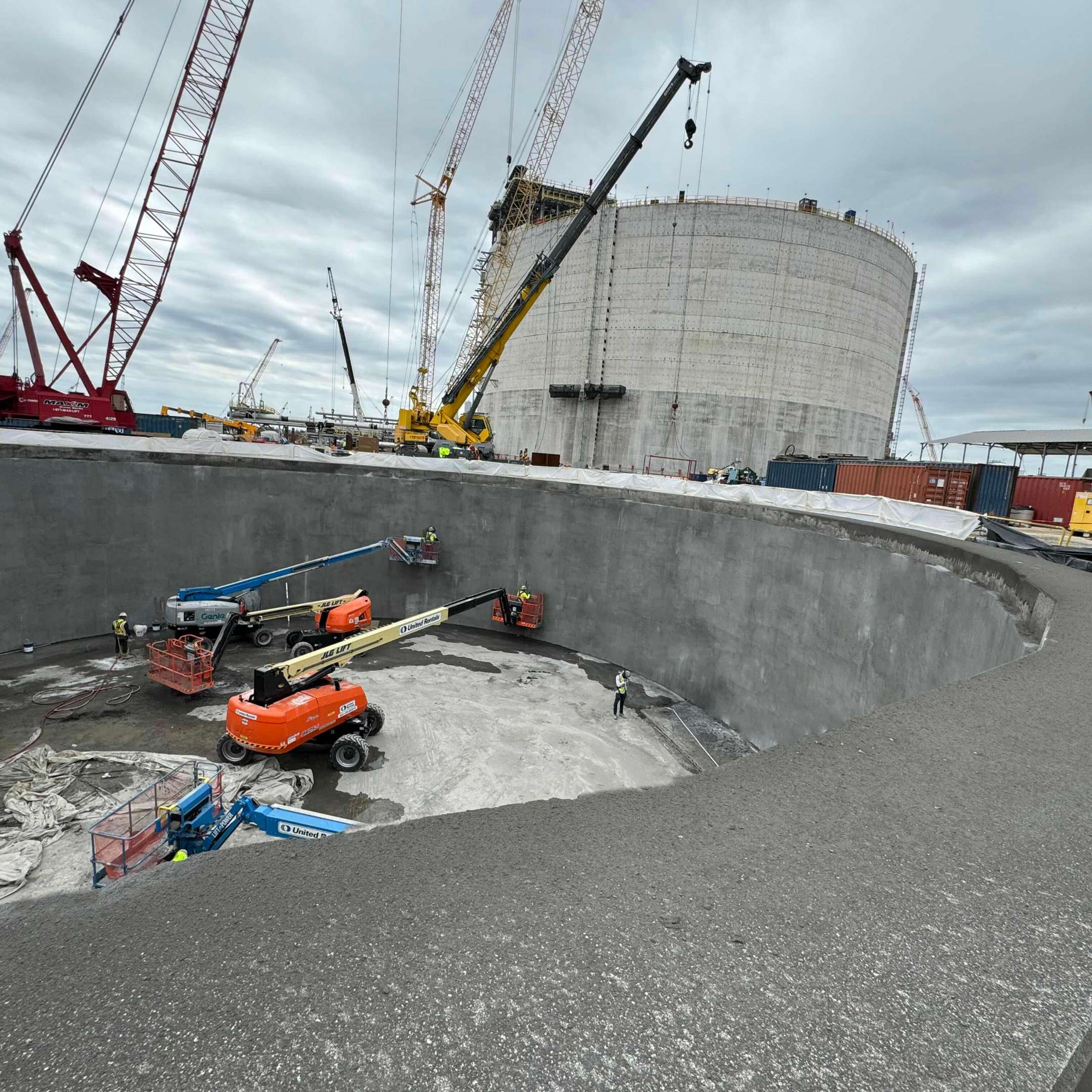

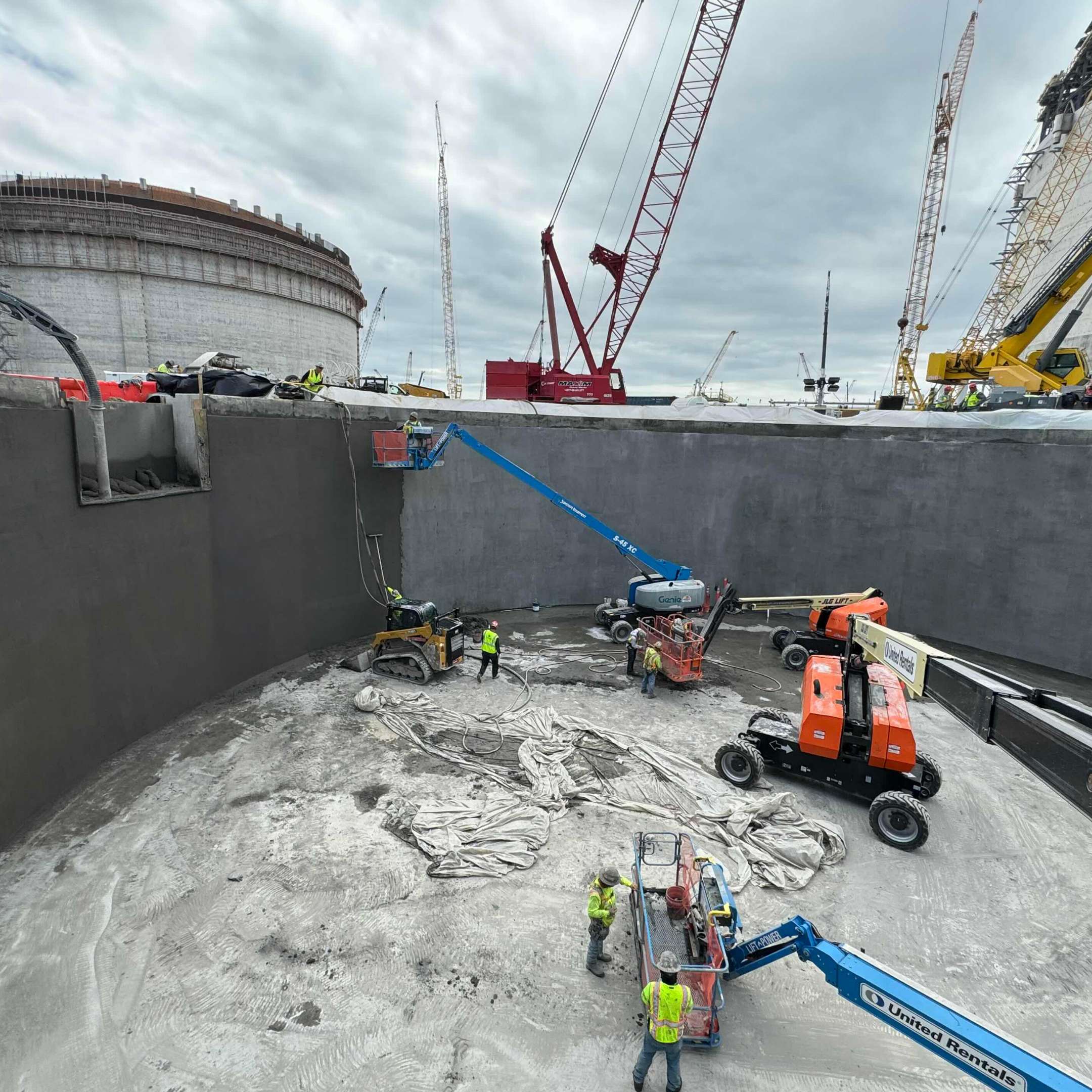

Several structural basins at a Plaquemines LNG facility required a structural shotcrete liner constructed to exceptionally tight dimensional tolerances. Boulderscape was selected to install the shotcrete lining across multiple basins while meeting stringent flatness and straightness requirements critical to the facility's performance.

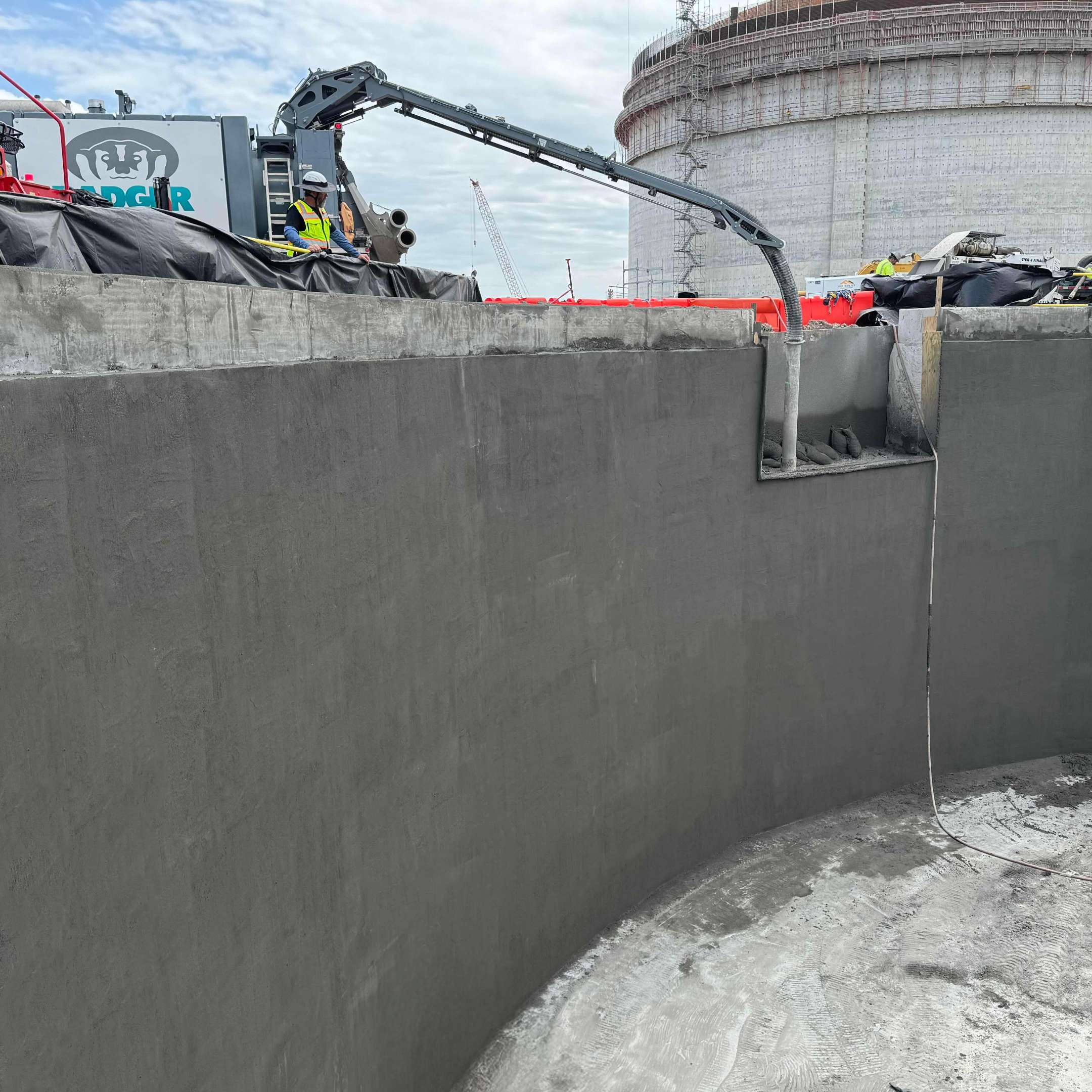

Throughout the project, Boulderscape maintained a finished straightness tolerance of just 1/8" over 10 feet in every direction. Approximately 14,300 square feet of shotcrete lining was installed, with every surface carefully hand worked and finished to a smooth steel trowel surface to achieve the required precision and appearance.
The project consisted of a 4" thick to 6" thick structural shotcrete section over cast concrete basins using a 5,000 PSI mix design. The entire scope was completed in 15 days, delivering a highly accurate structural lining system that met the project's demanding performance and quality requirements. See our sculpted shotcrete process or explore more shotcrete finishes.

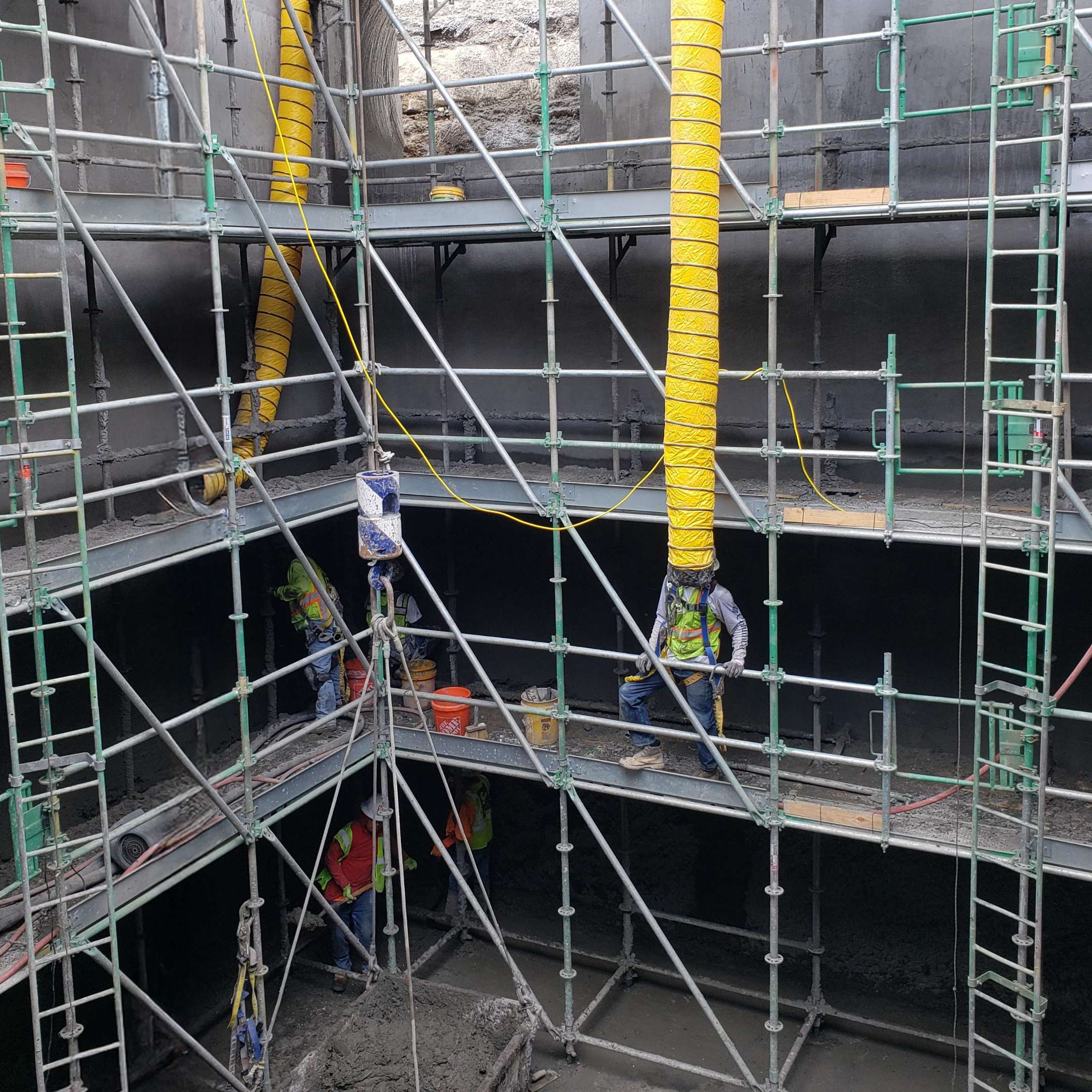

Boulderscape installed all control wires, structural shotcrete, and smooth trowel finish over approximately 14,300 sq ft
Smooth Trowel
Gray
4” - 6”
Cast Basin
5,000 PSI
Silica Fume
